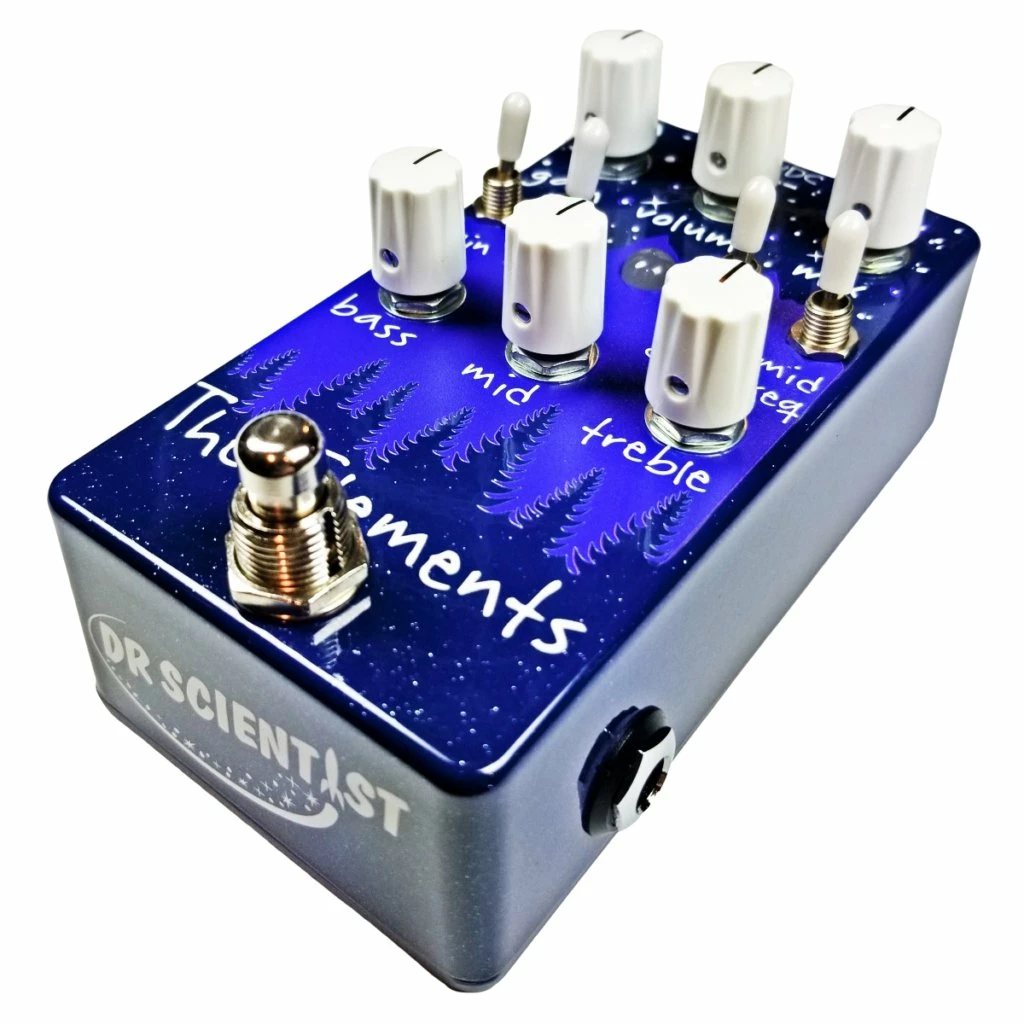

Your guitar tone is like the elements of space after the big bang, floating through a vacuum in disharmony, their potential infinite but unrealized. Realize their potential and bring your tone into harmony with the Elements, a pedal that delivers overdrive, distortion and equalizer, and works with guitars, basses and electronic instruments. The Elements provides so much control over your tone, you’ll think you’re sitting at the control deck of a flying saucer, but its intuitive design means you won’t need to check the manual every five minutes. Oriented toward high-gain tweakability, the Elements gives you the control you need while blasting a mean tone.

Operation:

Mono input, mono output

Power Requirements: 9VDC @ 50mA, 18VDC @ 100mA

Input/Output Impedance: 500kΩ/1kΩ

Bypass: True bypass using soft touch switch and relay

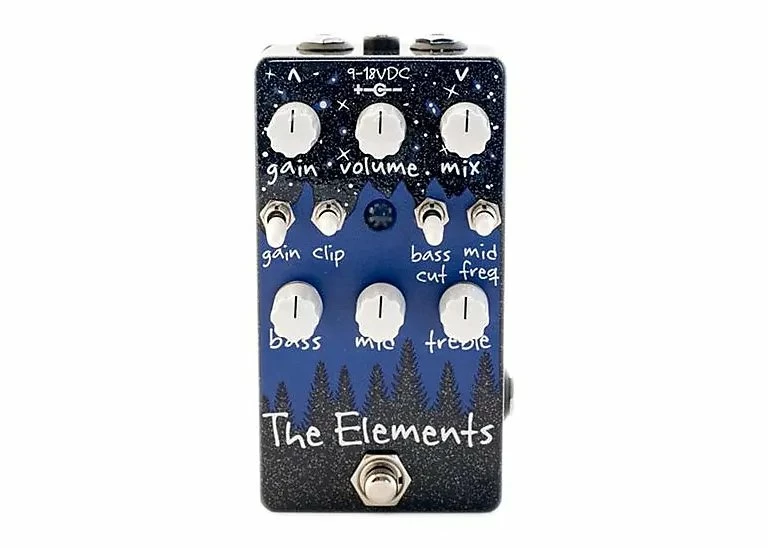

Knobs:

Bass: +/-15dB peaking filter centred at 100Hz

Midrange: +/-15dB peaking filter, centre frequency chosen by Mid Freq toggle

Treble: +/-15dB peaking filter centred at 3kHzGain: Op-amp based, range from less than unity to very high saturation

Vol:Passive resistance to ground

Mix: Dry at 0, wet at full

Switches: Gain: Lower position is low gain mode (less than unity to medium overdrive), Upper position is high gain mode (medium overdrive to heavy saturation

Clip: Upper position is LED clipping diodes (2V threshold), Middle position is no clipping diodes, Lower position is asymmetrical clipping with Germanium diode and LED (.3V + 3V threshold)

Bass: Upper position is medium input bass cut, Middle position is no input bass cut, Lower position is heavy input bass cut

Mid Freq:Upper position sets midrange knob to 400Hz, Middle position is 1200Hz, Lower position is 800Hz

Expression Control: Controls Mix knob, TRS input, 50kΩ
