Delay Doppelgänger.

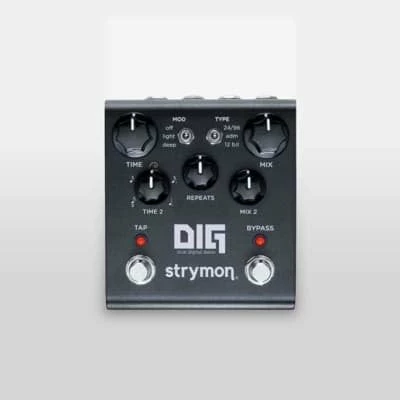

DIG unearths the true soul of digital delay and doubles it—two simultaneous, integrated delays with the captivating rack delay voicings from the 1980s and today, for incredible expressive potential.

Effortlessly create your own world of intricate and synchronized echoes, along with hypnotic and atmospheric repeats that blur the line between delay and reverb. Stretch your sonic horizons with five musically satisfying rhythmic subdivisions and three dual delay routing options. Go from syncopated, pulsating delay patterns, to evocative, spaced-out echo trails all in a compact, pedalboard-friendly format.

Rack to the Future.
Rack-mount digital delays of the ’80s ushered in a new era of audio effects. The innovative electronic designs generated the cleanest delays yet to be heard, but also created their own special and intriguing sonic characteristics. Thirty-plus years later, these sounds remain as distinctive and inspiring as ever.

Our thorough investigation of digital delay technology reveals the unique personalities that these delays possess. Delve into DIG’s three digital delay voicings: the early ’80s adaptive delta modulation mode, the mid-’80s 12 bit pulse code modulation mode, and the modern high-resolution 24/96 mode.

Multiply these distinct voicings by two and get DIG—your perfect dual delay ally.

Two Simultaneous, Integrated Delays. DELAY 1 – The Master Delay.
Free-running delay time allows you to easily dial in delays from 20ms to 1.6s with the Time knob or Tap Tempo switch.

Longer delay times lend themselves to more ambient soundscapes while doubling and slapback effects can be achieved at short delay times.

DELAY 2 – The Companion Delay.
Set the ratio between the two delays with one of five rhythmic subdivisions: triplet, eighth note, dotted eighth note, dotted quarter note, and the golden ratio.

Don’t want synchronization? Engage Free Mode to disable subdivisions and allow Delay 2 to be its own independent, free-running delay. Dial in short delay times for chorus/flange sounds to run alongside Delay 1.

Features Series, Parallel, Ping Pong
Set up your two delays in one of three configurations.

Series is like setting up pedals in a chain on your board, feeding Delay 2 into Delay 1.

Parallel will orient your delay lines so that they remain independent—Delay 1 in the left channel and Delay 2 in the right channel.

With Ping Pong, each delay acts as a ping pong delay, interacting together when both Mix knobs are turned up.

Free Mode
Don’t want your delays to be synchronized?

Free Mode disables time sync and subdivisions between Delay 1 and Delay 2, giving the Time 2 knob a full delay range from 20ms to 1.6s.

Circular Repeats
Holding down the TAP footswitch enables circular repeats, where both delay lines maintain a static volume and repeat continuously until the TAP foot switch is disengaged.

At this point, all previous settings will be restored.

Expression Pedal
Input allows for the connection of either an expression pedal, external tap, or Favorite switch.

Plug in an expression pedal and control any one knob with your foot.

Plug in an external tap pedal to remotely tap in your tempos.

Plug in a Favorite switch to save and recall a favorite preset.

TRS Stereo Input
We know that there are some out there that like to run stereo rigs. This is why we’ve added the option of running the input of your DIG in stereo.

Flip a jumper inside your pedal, use a TRS splitter cable, and now you’ve got yourself a stereo input.

Specs Sound Design
Two simultaneous, integrated delays, with unique digital rack delay voicings
Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats
One modern and two classic digital delay voicings: 24/96, adm, 12 bit
Five rhythmic subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter
Three choices for delay line modulation: Off, Light, Deep
Five “hidden” knobs for deep dual delay control: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats
Selectable Free Mode disables subdivisions and synchronization
Press and hold Circular Repeats effect
20ms – 1.6s delay range (40ms – 3.2s with Half Note Delay 1 Subdivision)
Ins, Outs, Switches
High impedance mono input, with selectable TRS stereo input
Stereo output
Three signal routing configurations: Series, Parallel, Ping Pong
Tap tempo and Bypass footswitches
Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter), external tap pedal (for remote control of tempo), or Favorite switch (to save a Favorite preset)
Audio Quality
Super low noise, high performance 24-bit 96kHz A/D and D/A converters
115db typical signal to noise
Analog dry path for a zero latency dry signal that is never converted to digital
+8dBu maximum input level easily handles instrument and line signals
20Hz to 20kHz frequency response
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing
More
True Bypass (electromechanical relay switching)
Selectable Trails Mode with high quality, transparent Analog Buffered Bypass mode
9V center negative DC power supply included, 250mA current draw
Strong and lightweight anodized carnation pink chassis
Designed and built in the USA
