Top 10 🌟 Empire Guitars Hudson Electronics Broadcast Preamp 24 V Green *Free Shipping In The USA* 😉

This Limited edition pedal is brand new in the box & we offer Free Shipping in the USA!
This is the only LTD Green one that we have!

BC-24V-USA

Broadcast 24v
Transformer coupled Class A Pre-amplifier
AVAILABLE ONLY THRU USA DEALERS!

The BC-24V-USA runs internally at 24 volts from a standard 9 volt supply. The increased voltage gives extra headroom and a tighter low end, which is fantastic if you are looking for a little less
saturation and grit, but without losing that unique sound of the Broadcast.

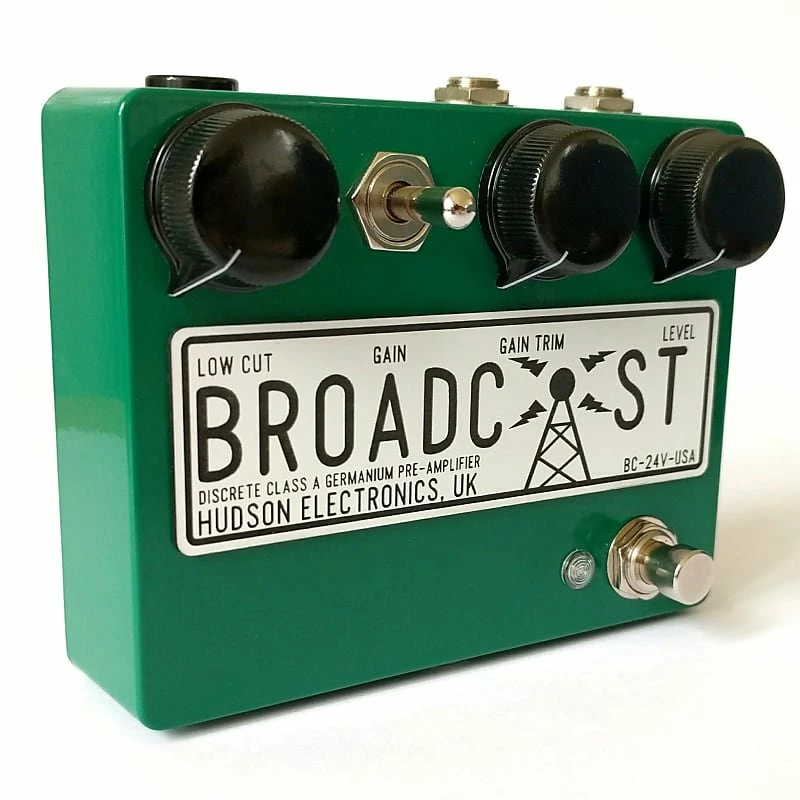

The BC-24V-USA comes finished turquoise-green and can only be purchased through USA dealers.

This transformer-coupled, discrete Class-A germanium circuit takes its inspiration from classic recording consoles of the 1960’s. The unique way in which the circuit saturates and colors your signal can be used to produce biting clean boosts, subtly colored and thickened signals with a frayed‐at‐the‐edge quality or ‐ when pushed – a unique sounding overdrive with a fuzzy, fried
texture.
The pedal also features a 3 position gain switch offering LOW–MID–HIGH modes.

In LOW mode the pedal has the most headroom and stays fairly clean across the it’s range, while retaining coloration from its germanium circuit and transformer – perfect if you use
higher output pickups, baritone, bass or keyboards…
The MID mode is voiced to sound and behave like the regular version of the Broadcast – still pretty clean but adding more grit and saturation to the mix.

HIGH mode (like on the standard Broadcast) heads into overdrive, distortion and fuzz but with a slightly tighter low end.

Features:
 Selected Germanium transistor
 TRIAD Magnetics steel-core transformer
 BI Technologies potentiometers
 Lumberg jack sockets
 Heavy duty Alpha foot switches (wired for true bypass and rated for >30,000 cycles)
 Three position gain switch
 Each and every Hudson Electronics pedal is built by hand onto a high-end PCB.
Assembly, hand-wiring, testing and packaging is all done by Michael Hudson

Controls:
LEVEL – Controls the overall volume of the pedal
GAIN SWITCH – Selects low, medium or high gain mode
GAIN TRIM – Controls the gain level of the Broadcast 24v (at higher settings the high-end of the
signal is gently rolled off)
LOW CUT – Attenuates the low-end of the Broadcast 24v. Since this control lies at the front end
of the unit’s circuitry, it is interactive with the gain controls
IMPORTANT!
THIS VERSION OF THE BROADCAST CONTAINS A VOLTAGE BOOSTER TO INCREASE THE
VOLTAGE OF THE POWER SUPPLY UNIT FROM 9V UP TO 24V. DO NOT ATTEMPT TO RUN THIS
PEDAL AT POWER SUPPLY VOLTAGES HIGHER THAN 9.6VDC AS THIS MAY DAMAGE THE
PEDAL AND VOID ITS WARRANTY!
DC SOCKET – The Broadcast 24v requires a DC power supply unit (PSU). Please ensure your PSU
can supply between 9v, a minimum current of 50mA and has a 2.1mm negative centre barrel
plug. Any other type may damage your pedal. If you plan on sharing the same PSU with other
pedals, we recommend using a PSU with isolated outputs, such as the Voodoo Labs PP2.
CURRENT DRAW – 50mA maximum

DIMENSIONS – 120 x 100 x 65mm

Full two year Warranty
